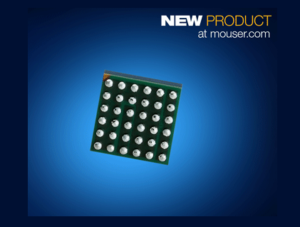

Mouser Electronics is now stocking Power by Linear LTM2810 µModule isolators from Analog Devices. Offering up to 7.5 kV_RMS of isolation, the LTM2810 µModule isolators are suitable for test and measurement equipment, medical equipment, electric vehicle (EV) and hybrid electric vehicle (HEV) systems, industrial applications, and metering systems.

The Analog Devices LTM2810 µModule isolators feature separate logic supply pins, supporting easy interfacing with different logic levels ranging from 1.6 V to 5.5 V. The devices coupled isolators are powered on each side by 3 V to 5.5 V supplies and provide 7.5 kV_RMS of isolation for one minute between the input and output logic interface. Ideal for systems with different ground potentials, the LTM2810 µModule isolators enable uninterrupted communication through large common mode transients faster than 50 kV/µs.

The LTM2810 µModule isolators feature an integrated transformer driver on the logic side and a low-dropout (LDO) regulator on the isolated side, regulating the rectified transformer output. The complete galvanic digital isolators require no external components and are available in SPI and I²C (with master mode-only support) compatible variants. The devices boast high-speed operation, with 400 kHz I²C isolation, 4 MHz / 8 MHz SPI isolation, and 10 MHz digital isolation. The LTM2810 µModule isolators feature 16.2 mm creepage and offer a maximum continuous working voltage of 1 kV_RMS and 1.6 kVDC.

To learn more, visit www.mouser.com/adi-ltm2810-isolators.
