RECOMs new high input voltage switching regulator R-78HE excels in versatility and quality for your industrial 48V battery powered equipment.

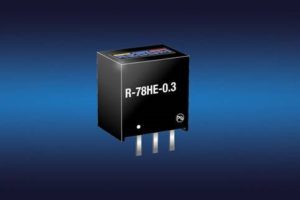

The R-78HE5.0-0.3 is a low-cost industrial grade switching regulator in a classic SIP3 3-pin format that will accept an input voltage up to 72VDC (100V DC surge) to supply a regulated 5V/300mA short-circuit protected output.

Operating at

The converter will operate over an extra-wide ambient temperature range of -40°C up to +105°C without load derating and delivers a tightly regulated (+/- 1%) output with high efficiency and low ripple/noise.

Reliability

The R-78HE5.0-0.3 is also exceptionally reliable with an MTBF of 15 million hours and is manufactured in our IATF 16949 certified factory for consistently high quality control.

Application

Typical applications include industrial CAN-bus systems, 36V/48V Li-Ion battery-powered equipment, off-grid solar power supplies and remote powered units with very long supply cables.

Availability

Samples and OEM pricing are available from all authorized distributors or directly from RECOM.

For more information, please visit www.recom-power.com
