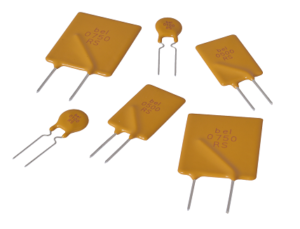

Bel Fuse-Circuit Protection announces their 0ZRS Series of radial resettable PPTC fuses for automotive applications. These AEC-Q compliant fuses have an operating range of 500mA – 10A, a max. current of 100 A and continuous use at voltages up to 32 V DC, with an operating temperature of -40ºC to +125ºC.

Featuring very low resistance and very high hold current, the 0ZRS Series is designed for today’s automotive applications, including motor and motor circuit protection (power door locks, mirrors, seats, sunroofs and windows); Electronic Control Unit (ECU) I/O protection, HVAC motor and I/O protection; infotainment and navigation systems; Liquid Crystal Display (LCD); power and cigarette lighter outlets, plugs and adapter/chargers; and stall detection in express window and sunroof circuits.

The 0ZRS Series is RoHS 2 compliant, halogen free and automotive AEC-Q200 compliant. Agency approvals include TUV (Std. EN/IEC 60738-1-1; EN/IEC 60730-1) and UL Recognized Component (Std. UL1434). Packaging varies from 1,000 to 3,000 pieces, while bulk is available for all. Tape and reel available for the vast majority.

Link to 0ZRS Series Datasheet: https://belfuse.com/resources/datasheets/circuitprotection/ds-cp-0zrs-series.pdf
