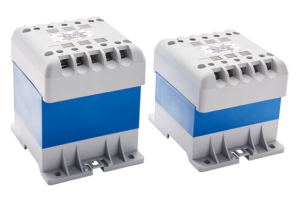

Signal Transformer announces the EcoTrans Standard Series Transformers, which are used to step up or step down voltage, while keeping the mains and output circuits isolated through CE Certified Reinforced Insulation. The EcoTran Series is a UL Listed product to UL 5085-1, CE Compliant backed by TUV Rhineland and meets UL Insulation Class F, as well as utilizing split bobbin construction that provides superior isolation with no exposed metallic surfaces.

With the EcoTran Series, Signal Transformer redesigned the small, linear transformer to make it compatible with 21st century functionality, while adding key safety features, including visually appealing cases which mitigate accidental contact with sharp metal surfaces. Wire ports are segregated by isolation barriers and, whether hard wired or Fast-on connected, live parts are IP20 type touch safe when connected with insulated Fast-On connectors and/or properly stripped wires, eliminating potential shock hazards.

With 30 eco-friendly models utilizing high quality silicon steel laminations to reduce core
losses and power ratings of 105, 140, 170, 200, 330, 450 VA, a wide range of options are available to suit industrial applications, including vending machines, IT equipment, medical equipment, industrial lighting, mining operations and water stations, fire alarm and security systems, machine tooling, audio and CTV systems, railway as well as motion and environmental controls.

EcoTran can be chassis mounted with conventional threaded fasteners or set onto 35 mm
DIN Rail compatible mounting for ease of installation in DIN-based machine control cabinets or similar industrial enclosures. The EcoTran Standard Series Transformers are
UL Listed to UL 5085-1, UL5085-2, CSA C22.2 No. 66.1-06, CSA C22.2 No. 66.2-06,
CE Compliant backed by TUV Rhineland to IEC 61558-1, Parts 2-4 and 2-6 and UL 1446
Class F insulation system rated.

For more information visit belfuse.com/signal
