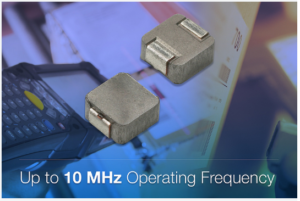

Vishay Intertechnology, Inc., introduced the first extended-frequency inductor in the low profile, high current IHLP family. The new IHLP‑1616BZ-0H series features high frequency performance up to 10 MHz with the lowest losses of any inductor on the market for frequencies of 1 MHz and above. By using the IHLP-1616BZ-0H, designers can improve efficiency and potentially reduce the size of DC/DC converter circuitry.

Typical applications for the IHLP-1616BZ-0H will include notebook and desktop computers, sensors, cameras, POL converters, and various battery powered devices that require one or more regulated voltages. Working in conjunction with high frequency controller ICs, the IHLP-1616BZ-0H allows lower inductance values and thus lower DC losses, as well as reduced high frequency core losses, enabling a physically smaller size of inductor to be used while boosting energy efficiency.

The IHLP-1616BZ-0H series features a typical DCR from 5.5 mΩ to 26.6 mΩ and inductance values from 0.10 µH to 1.0 µH. The IHLP-1616BZ-0H provides rated current to 45.0 A and handles high transient current spikes without saturation.

Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra low levels, the inductor offers high resistance to thermal shock, moisture, and mechanical shock. The IHLP-1616BZ-0H is RoHS-compliant, halogen-free, and Vishay Green.

Device Specification Table:

FEATURES:
• Shielded construction
• Extended frequency range up to 10 MHz
• Lowest losses above 1 MHz
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• IHLP design. PATENT(S): www.vishay.com/patents

APPLICATIONS:
• Notebook / desktop applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• PMIC for sensors and cameras

Samples and production quantities of the new inductor series are available now, with lead times of 10 to 12 weeks for large orders.
